CUSTOM CARTRIDGE MANUFACTURE ​

Using a parent case and a multi-draw process utilizing our WTC Sizing Dies and custom draw inserts, we can create cartridge brass for virtually any wildcat out there!

EXCEPT THE .22 BMG… HANG ON,WE CAN PROBABLY DO THAT ONE TOO!

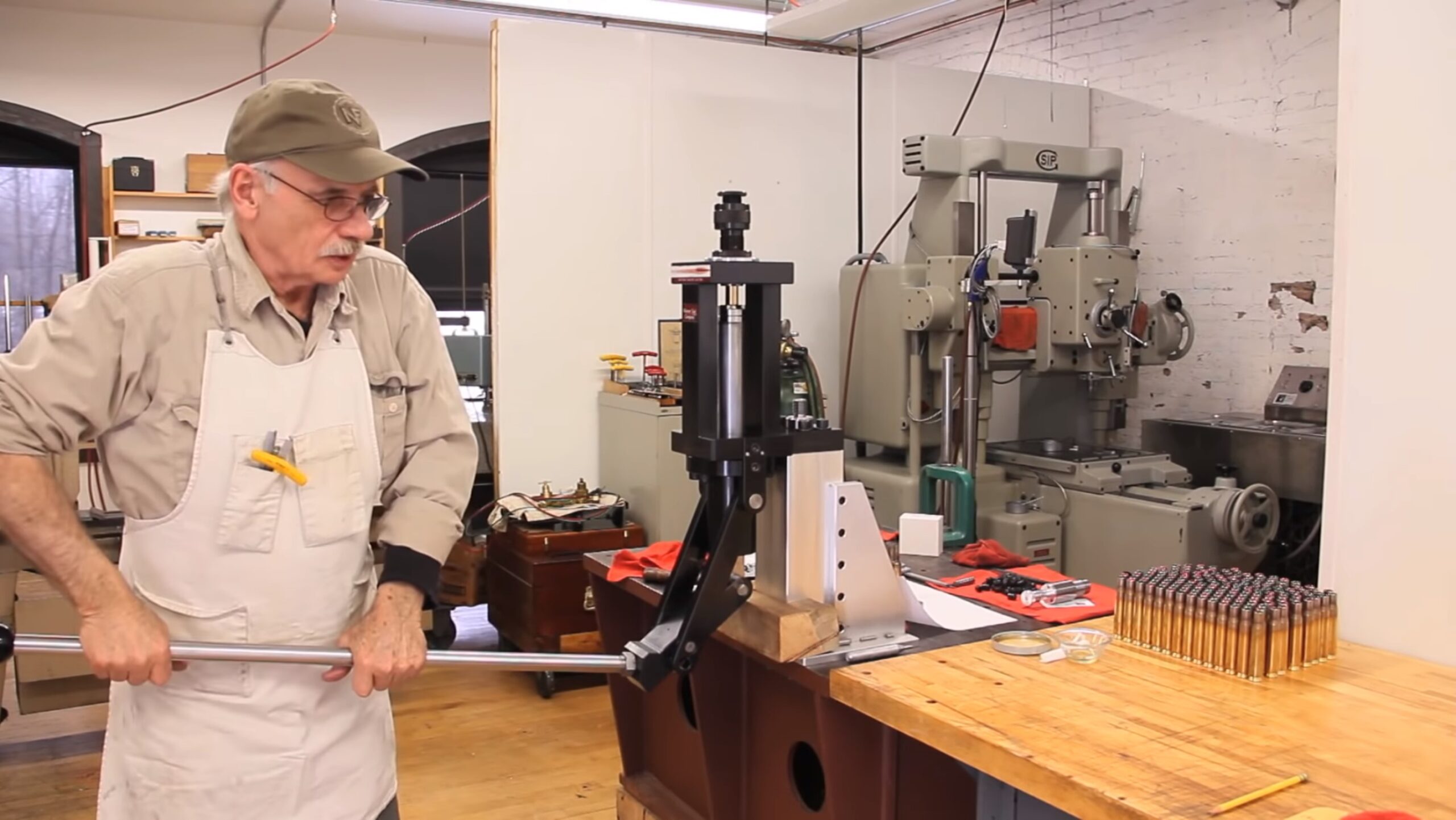

Drop us a line, get your order in, and give al a reason to come back to the shop, put on his apron, and crank on a press again!

CURRENT CAPABILITIES

  • 416 Barrett brass, using RWS brass parent case/brass.
  • 460 Styr brass, using RWS brass parent case/brass.
  • 375 (video below), using 50 BMG RWS parent case/brass.
  • Pretty much anything – ask us!

THE PROCESS

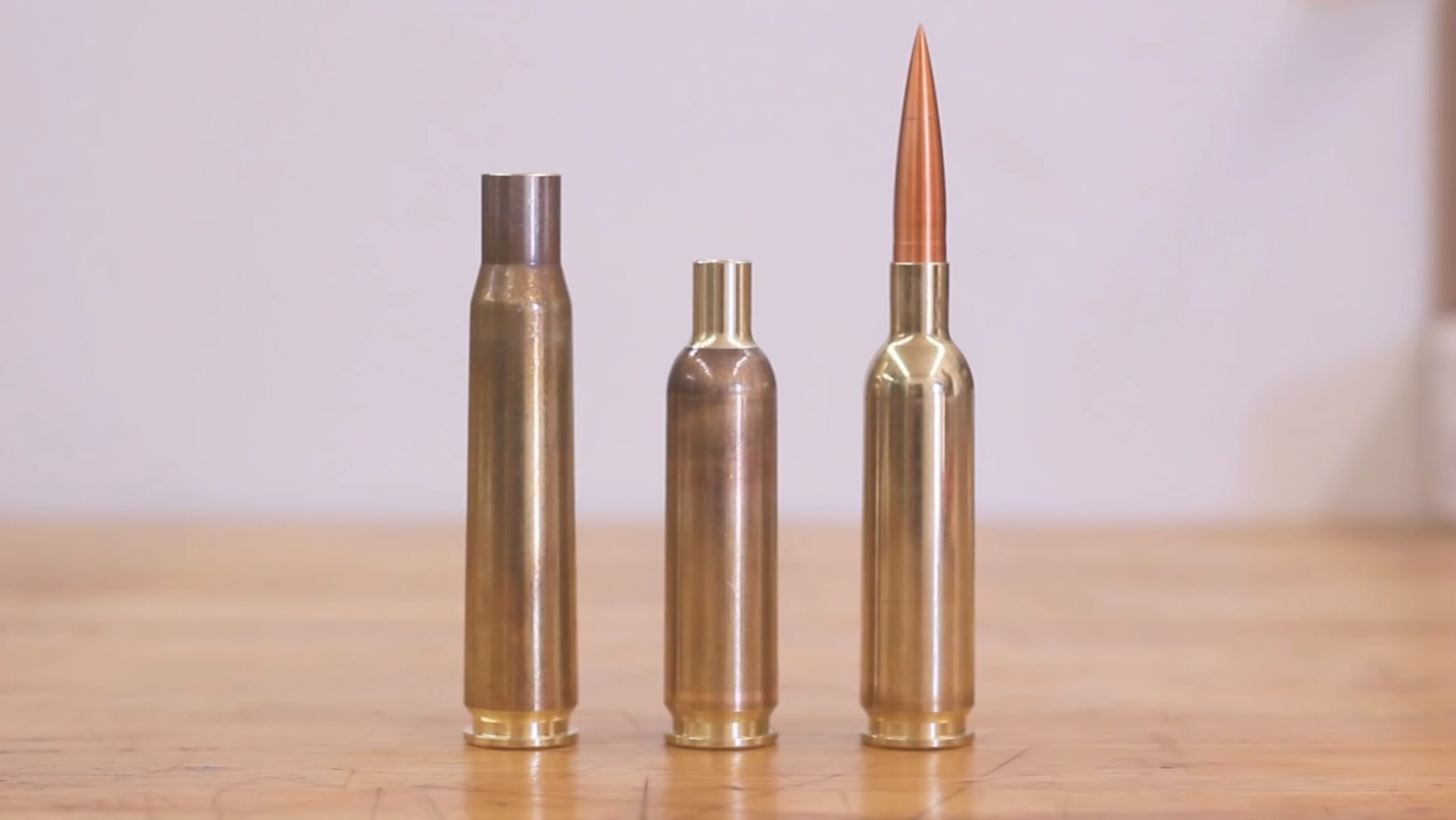

(RWS 50 BMG EXAMPLE)

CUSTOM EXPANDER INSERTS

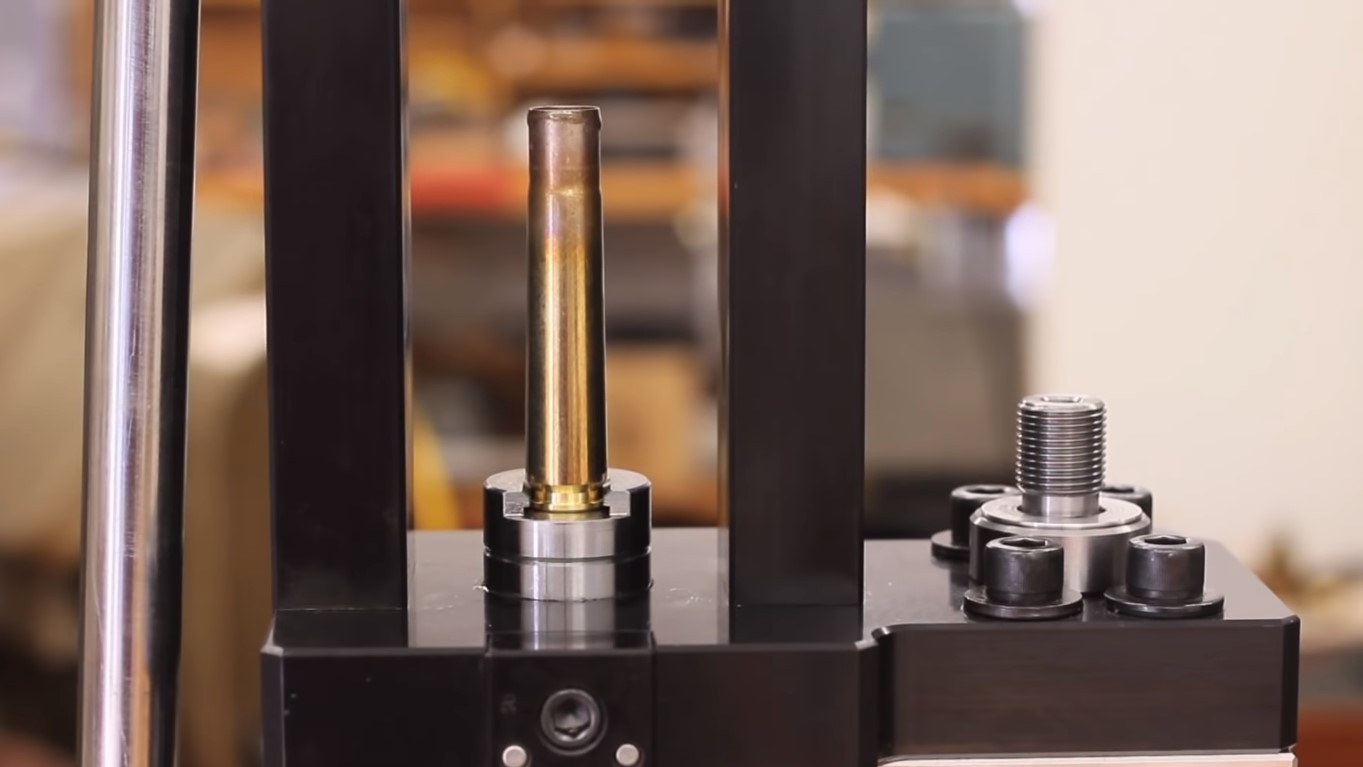

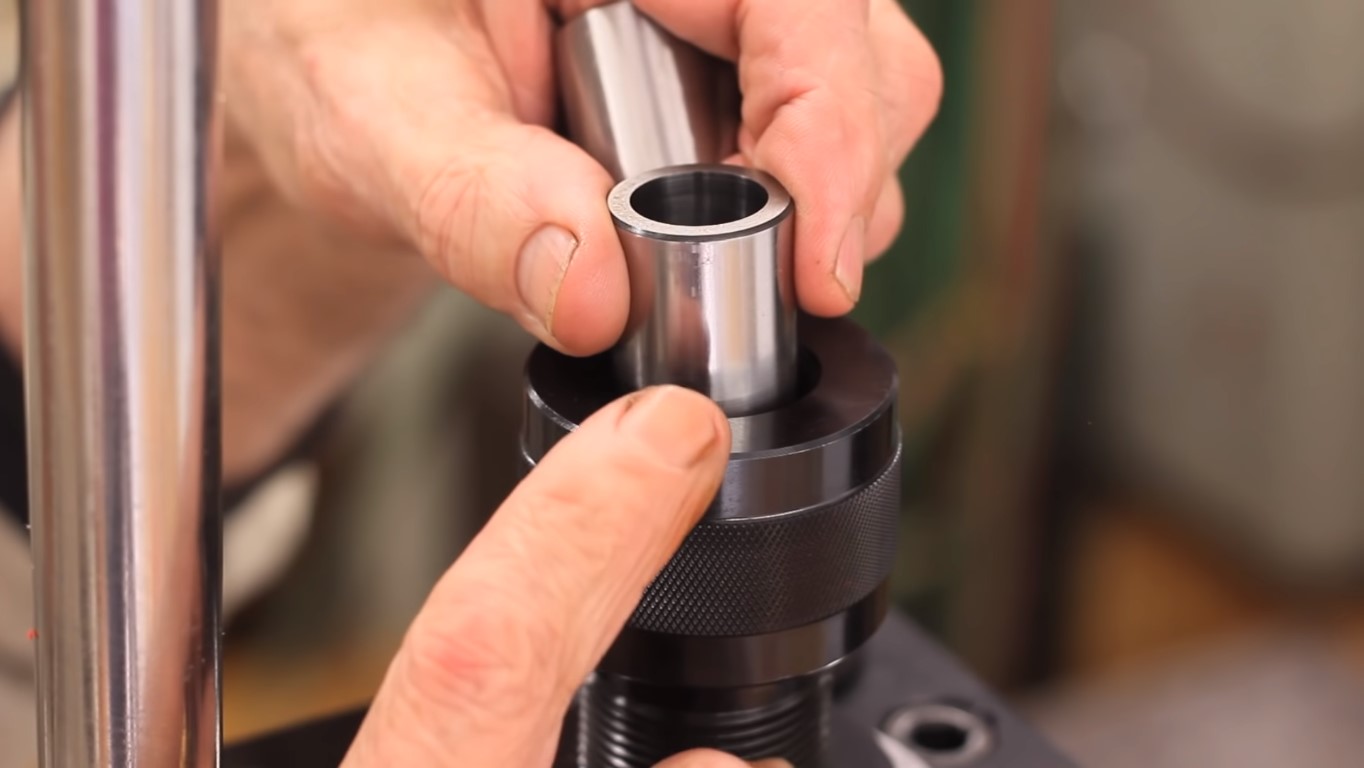

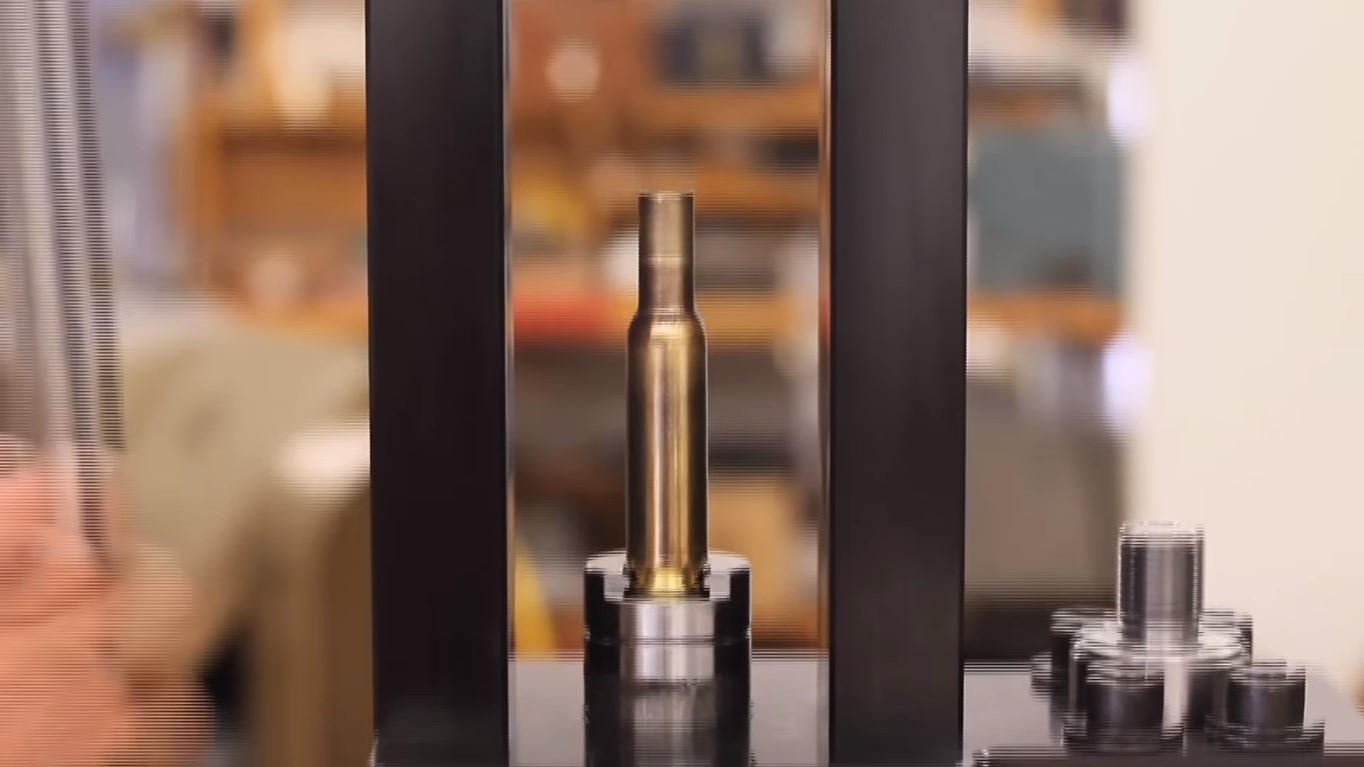

Custom Internal Expander Inserts are placed into the WTC Sizing Die to open up the neck and body using a 4-step process.

1-4: EXPAND

Expansion opens up the case to a point slightly larger than the final case dimensions.

Punches 1 and 2 expand the neck, while punches 3 and 4 expand the body.

BODY AND TOP
SIZING INSERTS

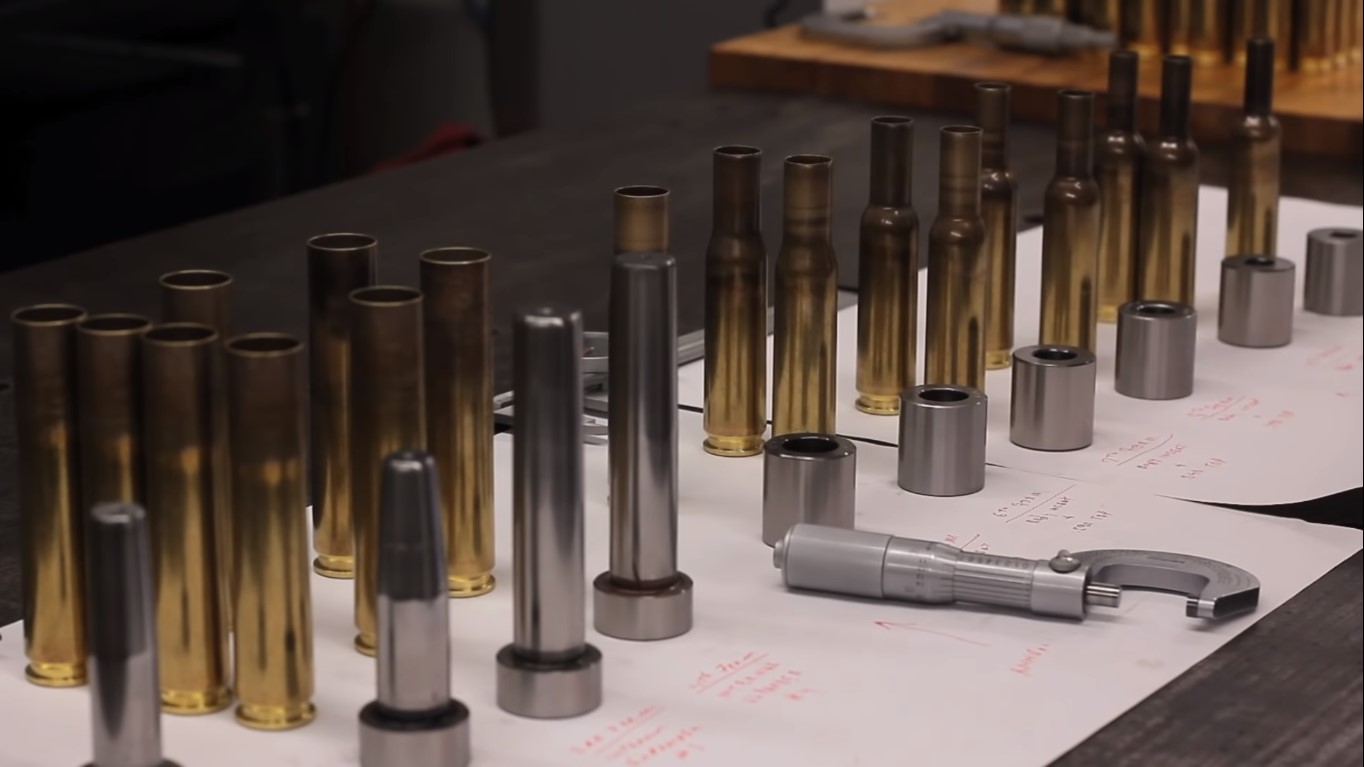

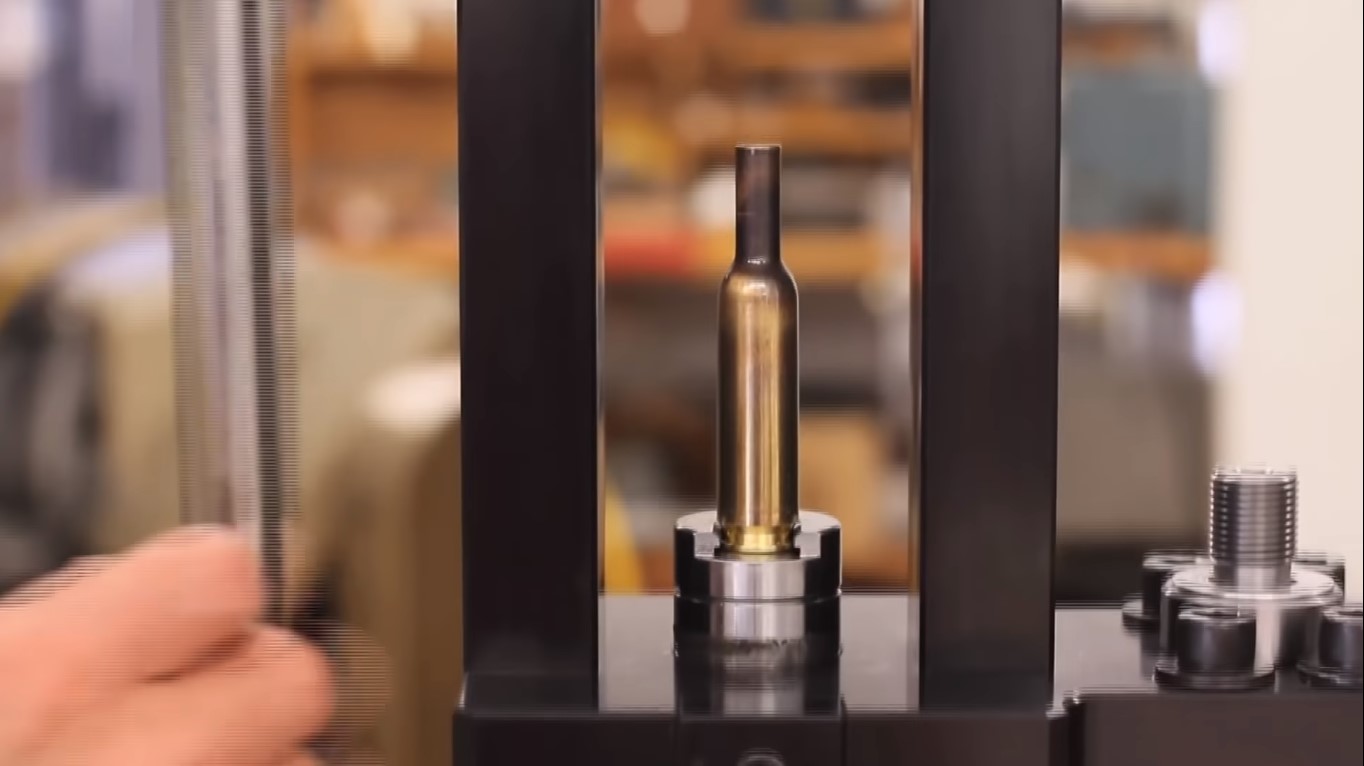

The final Body Sizing Insert and a variety of Top Sizing Inserts, successively decreasing in size, are used to size the body, shoulder, and neck.

5-6: CLOSE + FORM

5: Closes the neck and starts to form the shoulder.

6: Closes the neck even further.

7-9: CLOSE + FORM

7: Begins to form the radius of the finished shoulder and takes the neck even further.

8: Advance the shoulder and close the neck once again.

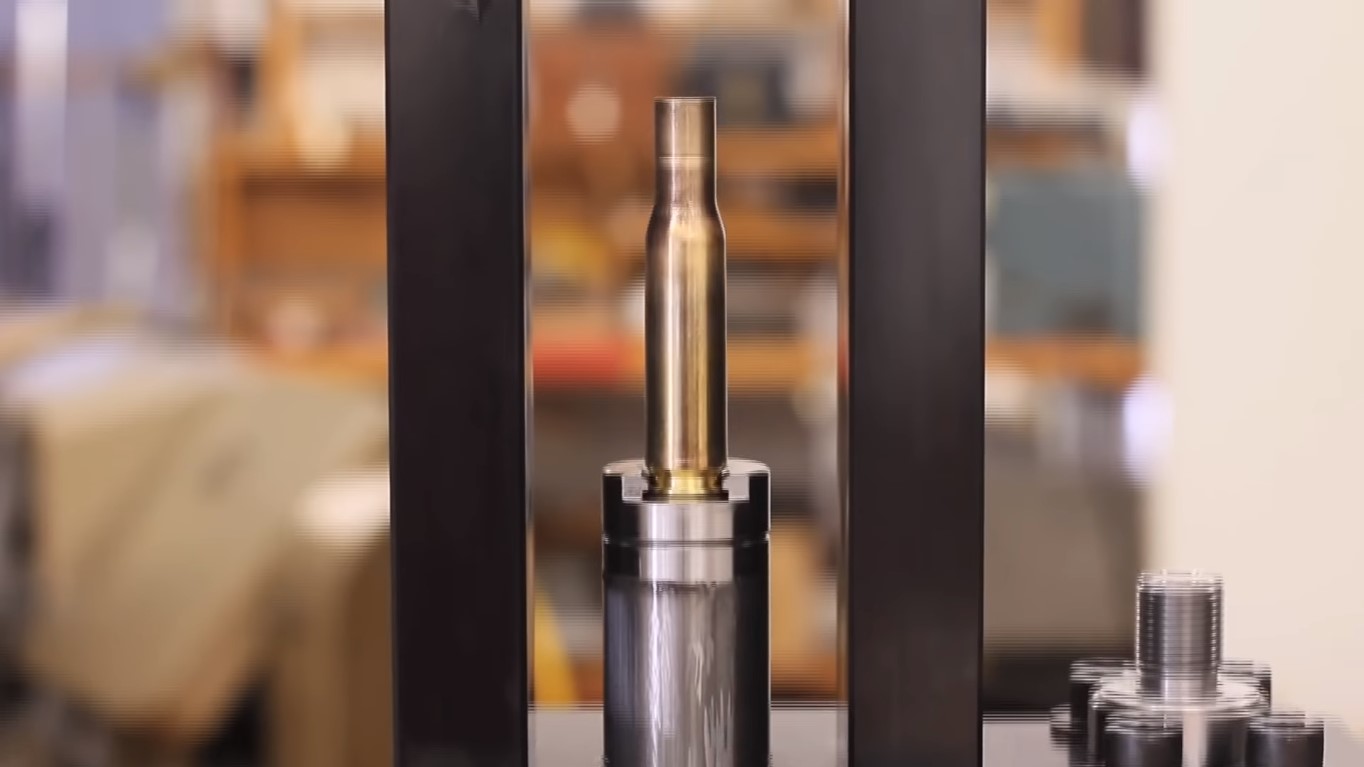

10: FINAL SIZE

Completes the shoulder form and neck sizing

BODY INSERT BUSHING + CNC LATHE

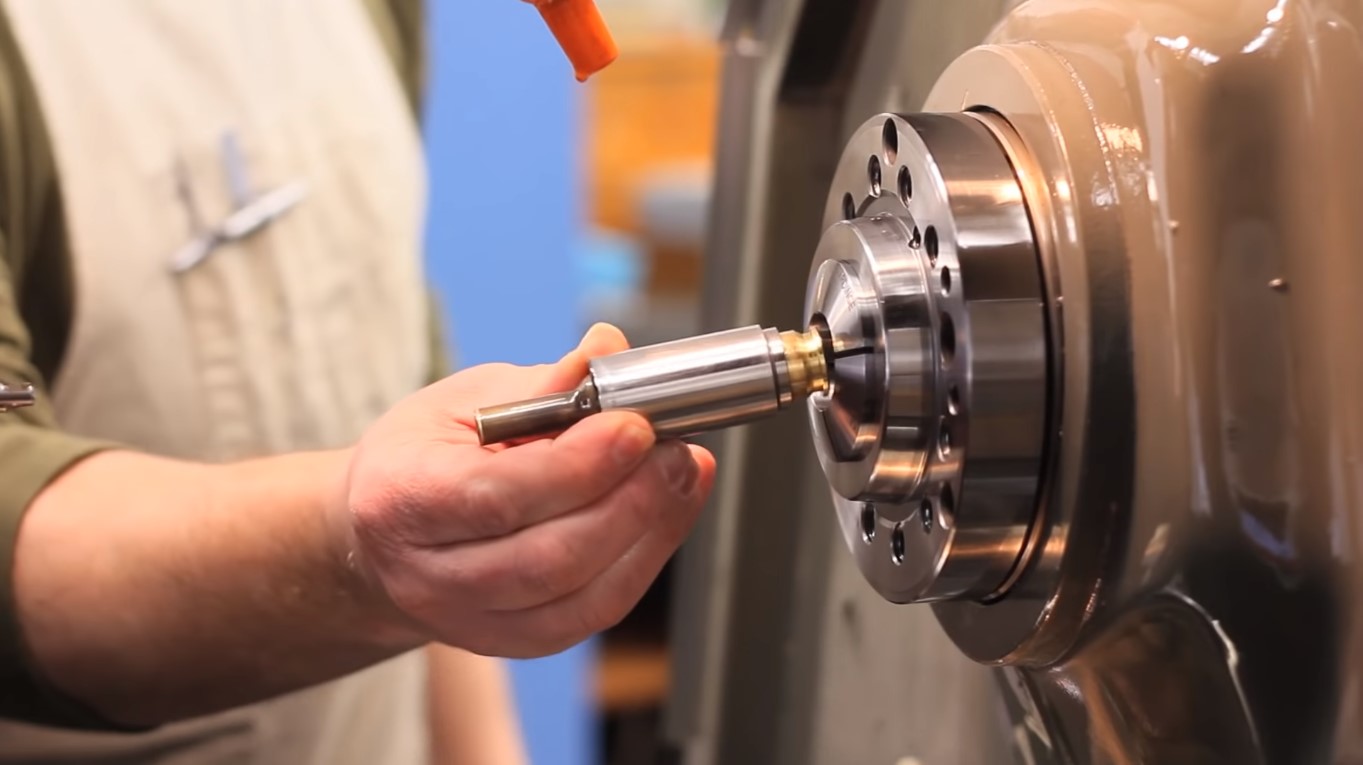

The final sized brass is placed into the Body Insert Bushing, which is then colleted into the CNC Lathe.

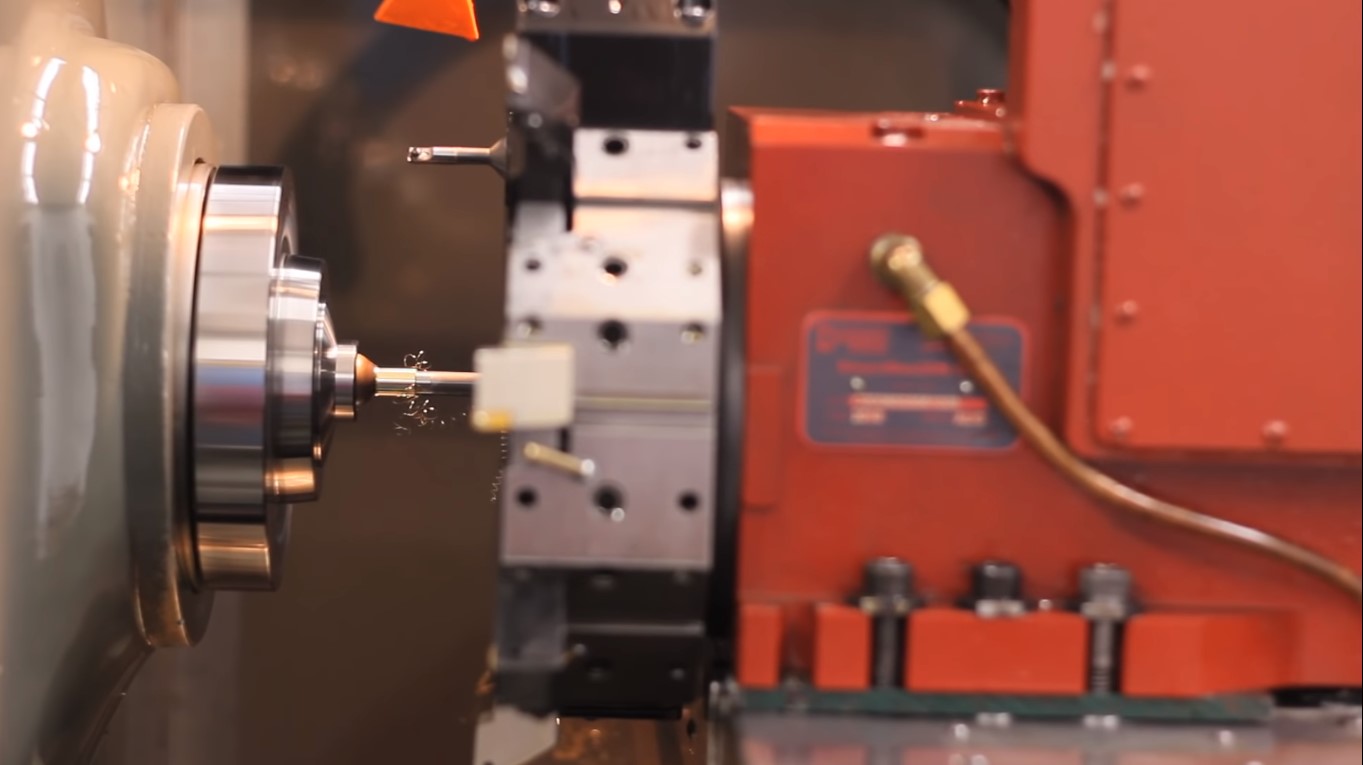

OP 1: CUT

Cuts the excessive neck length, resultant from the forming steps.

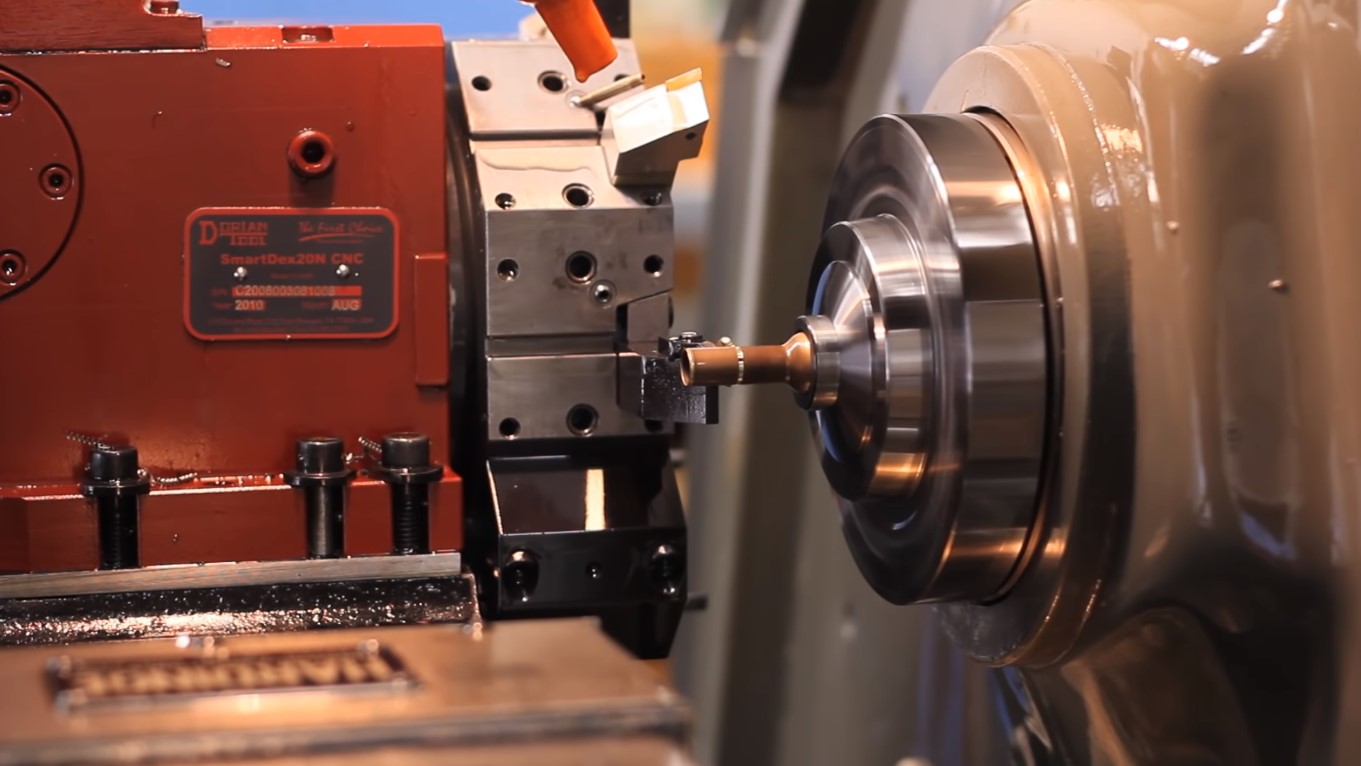

OP 2: TRIM + CUT

Trims to final cartridge length and cuts the final outside neck diameter.

OP 3: CUT

Trims to final neck inner diameter to give us the desired size and proper neck tension.

THE WTC SIZING DIE

The WTC Sizing Die lives at the heart of our custom cartridge manufacturing process. We can rely on our exacting tolerance and precision manufacturing to produce the best custom brass the industry can offer.
